Rieco Titan 56161 Electric Upgrade Kit for Convertible Jacks

The Rieco Titan Convertible Jack Electric Upgrade Kit is a straightforward solution to enhance the Rieco Titan jack's performance by converting it from a manual to an electric system. This upgrade will facilitate the process of raising and lowering your RV's camper, resulting in a more convenient and efficient experience. The kit is specifically designed to replace the mechanical crank gearbox of the Rieco Titan convertible jack with an electric power head. Rieco Titan’s modular design makes the conversion as easy as removing the mechanical crank gearbox from the jack post and replacing it with the electric power head in this kit.

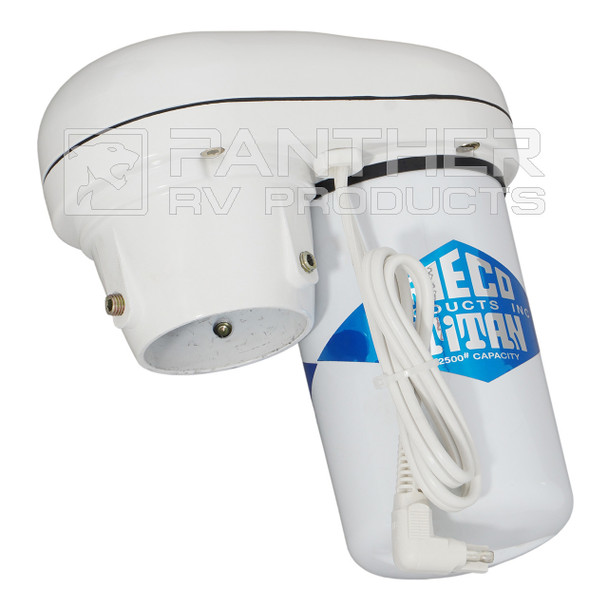

Rieco Titan designed their 12V electric motor with durability and user-friendliness in mind, this electric motor is an essential component of the jack system, driving the gears and lifting the jack's screw mechanism to effortlessly adjust the jack's height. The motor is enclosed in a sturdy protective casing, shielding it from potential damage caused by water, dust, and debris, ensuring a long-lasting lifespan.

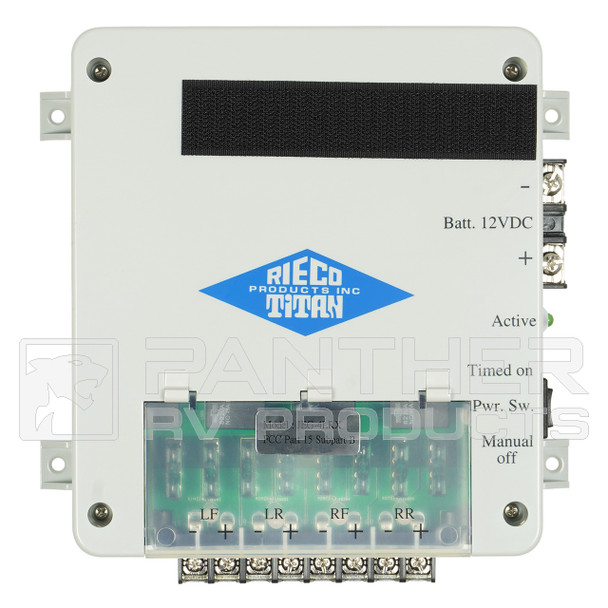

The Rieco Titan JEG-4LRX Control Box and Wireless Remote system is designed to control 4-corner jacks with ease, allowing you to raise and lower each jack or all at the same time. Built with the latest transmission technology, the controls ensure a secure and reliable connection between the control box and the wireless remote. Additionally, each jack connection is safeguarded by a 30-amp fuse, providing added protection against electrical overload and other potential damage. Included is an emergency remote (red remote) allowing you to control the jacks in case the wireless remote is misplaced or runs out of battery.

To synchronize a transmitter with the system, proceed as follows to enter the learning mode:
1. Press and maintain pressure on the on/off rocker switch located on the receiver module. Once the LED indicator begins to blink, you may release the switch.
2. Continue by pressing and holding any button on the transmitter until the receiver module's LED indicator illuminates steadily. This indicates that the transmitter has been successfully synchronized.

14031 and 56332 Jacks
