MC Enterprises 160922 Suburban Aftermarket RV Pilot Water Heater Gas Control Valve

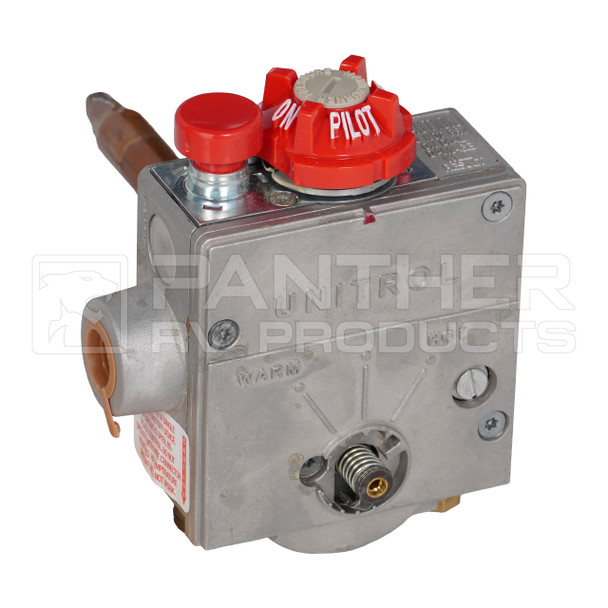

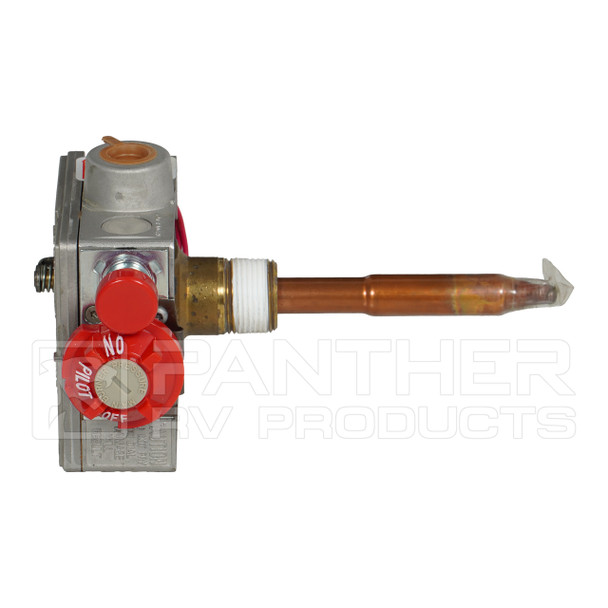

The Unitrol 160922MC RV Water Heater Gas Control Valve serves as a multifunctional unit crucial to the operation of your gas-powered water heater. Equipped with a control knob at the top, this valve provides the user with the ability to light the pilot flame, set the desired water temperature, and shut off the appliance when necessary. Internally, the valve incorporates a temperature-sensing probe that is immersed in the tank water to monitor thermal levels. Additionally, the valve features a high-temperature energy cut-off (ECO), a safety mechanism that interrupts the gas flow to the main burners by breaking the circuit created by the thermocouple if water temperature surpasses a predetermined safe limit.

Before starting the installation, ensure the gas supply is shut off as a safety precaution. Wearing protective gloves is recommended during the installation procedure. Utilize either an adjustable wrench or a pipe wrench, cautiously detach the original gas control valve from the water heater tank. Retaining the original outlet fitting is crucial, as it will be used with the new valve. Following the removal of the old valve, proceed to attach the new valve's inlet fitting (not included) as well as the original outlet fitting. Complete the installation by connecting the propane line, thermocouple, and burner tube to the newly installed valve.

Begin by setting the temperature dial to its lowest setting. Then, turn the gas control knob counterclockwise to the “PILOT” position. Position a lighter at the pilot burner. Press and hold the reset button (red button) down fully while lighting the pilot. Continue holding the reset button for about one minute after the pilot is lit. Then, release the reset button and it should pop back up, ensuring that the pilot remains lit. If the pilot goes out, you should repeat the initial steps. If the reset button does not pop up when released, or if the pilot will not stay lit after several attempts, turn the gas control knob to “OFF” for safety. Once the pilot is lit and stable, turn the gas control knob counterclockwise to the “ON” position. Finally, adjust the water temperature dial to your desired setting. Remember to always follow the manufacturer’s instructions and safety guidelines for optimal operation and safety of your water heater.
