MC Enterprise 30133MC Aftermarket Dometic RV 12V Furnace Blower Motor

(No reviews yet) Write a Review

SKU:: 30133MC
UPC:: 815254022902
MPN:: 30133MC
Shipping:: Free Shipping on Orders over $99. Exclusions Apply.

$70.55

Current Stock: 2

Quantity:

Description

Description

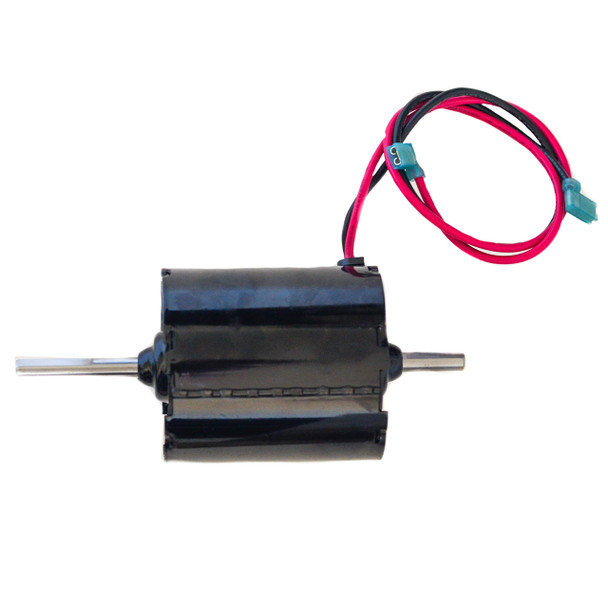

MC Enterprise 30133MC Aftermarket Dometic RV 12V Furnace Blower Motor

The furnace motor is attached to the blower wheel and the combustion air wheel. This is a 12V DC power motor, with two shafts. Once the control board sends power to the motor, it will start operating which will rotate the shaft attached to both wheels. The movement of both wheels will circulate the air causing air flow. the motor size and revolutions per minute will corresponds with the furnace BTU/hr size, making it very important to get the correct size motor for your furnace.

Additional Info

Power Source

12V DC

Motor Body

3" Diameter x 3-3/8" Long

Shaft #1 Dim.

2" Long x 5/16" Diameter

Shaft #2 Dim.

1-1/8" Long x 5/16" Diameter

Red Wire Length

20" Long

Black Wire Length

16" Long

Full Load Amps

7.6

Compatible with the following Dometic™ furnaces 8525-IV and 8531-IV.
Replacement for 37697 Motor
