Airxcel

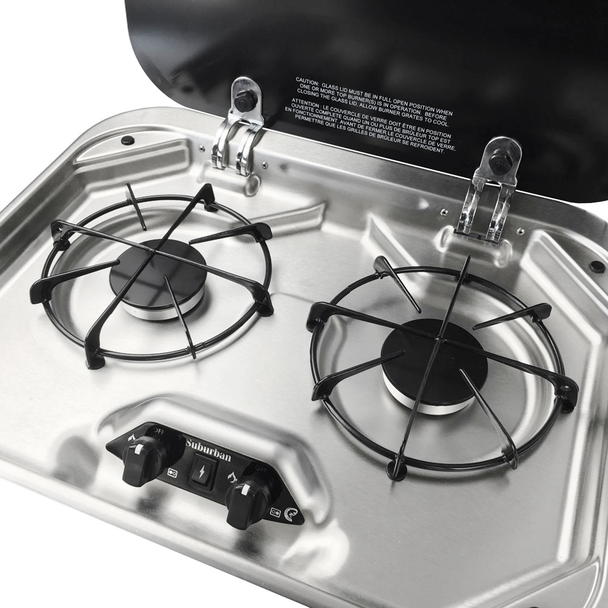

Suburban 3334AST 2-Burner RV Propane Cooktop w/ Glass Lid
- SKU:
- 3334AST
- MPN:
- 3031AST
- Shipping:
- Free Shipping on Orders over $99. Exclusions Apply.
Description
Suburban 3031AST 2-Burner RV Propane Cooktop w/ Glass Lid
This cooktop is perfect for a van, small trailer, or a truck camper. The 3031AST is a 2-burner propane cooktop made of high quality materials from Europe and offers top of the line performance. It will add a stylish look to your kitchen area.Ignition and Fuel
The Suburban 3031AST is fueled by LP-Gas, with AA battery operated electric ignition. features two 5,800 Btu sealed burners that help keep liquid from seeping into hard-to-clean places on the cooktop. The dual black enamel grates can be cleaned individually and are recessed below the cooktop further helping to keep spills from spreading across the counter top surface.RV Propane and BTU’s
This cooktop requires low pressure (11” W.C.) propane for operation. This is achieved with a low pressure regulator which is standard/required on all RV's. If there is not a pre-existing RV propane system, then you have to setup a low pressure propane system.
RV Cooktops are designed smaller than household cooktops, which means they produce less heat than the large burners on your cooktop at home. An average household cooktop has a BTU rating of 10,000. Additionally, you will most likely be using this cooktop during your travels with varying elevations. This cooktop is rated for an elevation up to 4,500 feet. Operation above this elevation will reduce the BTU's by 4 percent for every 1,000 feet above 4,500 feet. For example, at 8,500 feet, the cooktop will perform approximately 16 percent less than it's rated BTU's. This is caused by a few factors including the lack of oxygen in the air and the change in the air/fuel mixture.Additional Info
Model
SDS2
Overall Dimensions
18 ¾” x 14 ½”
Cut-out Dimensions
18 â…œ” x 14 â…›”
Cabinet Depth
4”
Burner Grate Dimensions
7 ½"
Power Source
LP Gas (Propane)
Gas Pressure Requirement
11" W.C.
BTU/hr Rating
5800 each
Ignition
Electric
Safety Shut-Off (Thermocouple)
No
Burner Style
Sealed
Fastening Method
Hardware
Note:The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
2 Reviews
-
2-burner cooktop
Product works great. I only did 4 stars because the instructions for the cutout are terrible. I ended up making a few attempts in cardboard to refine the cutout hole size before making cuts in the counter. Even doing that I missed the different inset on the rear clamps and had to screw tabs inside the cutout to accommodate. Product would ideally come with a life size template to trace.
-
Cooktop
Well made, easy install.
