MC Enterprise 91447MC Aftermarket Dometic RV Water Heater E.C.O. High Temperature Shut-Off
- SKU:
- 91447MC
- MPN:
- 91447MC
- Shipping:
- Free Shipping on Orders over $99. Exclusions Apply.
Description

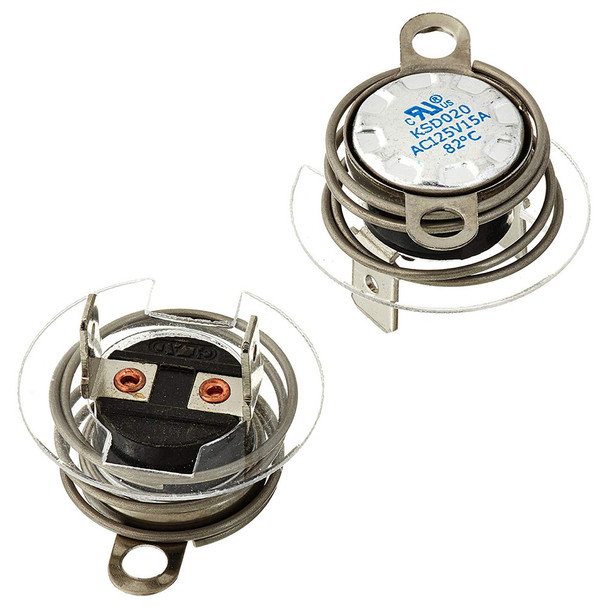

MC Enterprise 91447MC Aftermarket Dometic RV Water Heater E.C.O. High Temperature Shut-Off
The E.C.O Thermostat is a closed switch that sends voltage to the solenoid valve. The switch opens if the water temperature exceeds 180°F, protecting the water heater from damage. If there is a spark present on your water heater, but no gas flow, it could be a defective E.C.O Temperature Switch.Additional Info
ECO Temp. Limit
180°F (82°C)
Thermostat Temp. Limit
140°F (60°C)
| Series | Model Numbers |
|---|---|
| GCH6-XE | GCH6-4E, GCH6-6E, GCH6-7E |
| GC6A-XE | GC6A-7E |
| GH6-XE | GH6-6E, GH6-7E, GH6-8E |
| G6A-XE | G6A-3E |
| GH6-XE | GH6-3E, GH6-4E |
| G6A-XE | G6A-4E, G6A-6E, G6A-7E, G6A-8E |
| GCH6A-XE | GCH6A-7E, GCH6A-8E, GCH6A-9E |
| GC6AA-XE | GC6AA-7E, GC6AA-8E, GC6AA-9E |
| GCH10A-XE | GCH10A-2E, GCH10A-3E, GCH10A-4E |
| GC10A-XE | GC10A-2E, GC10A-3E, GC10A-4E |
| G610-XE | G610-3E |
| GH610-XE | GH610-3E |
| G10-XE | G10-2E, G10-3E |
| GC10-XE | GC10-1E, GC10-2E |
| GH10-XE | GH10-2E, GH10-3E |
| GCH6A-XE | GCH6A-10E |
| GC6AA-XE | GC6AA-10E |
1 Review
-
91447MC
I went to install them. First the two thermostats don't have obvious markings as two which thermostat is which. When I used a magnifying glass I could find an embossed part number, one of which had an 82 in it (for 82 degrees C) and the other which had a 60 in it (for 60 degrees C). The 82 is the ECO and the 60 is the regular thermostat. The adhesive foam patch sent was too big for my WH-6GEA. It uses the foam patch shown in the far right photo, not the patch which has the up arrow and the two ear cutout (one on each side). I am sure that I will be able to cut it down to size but the labels will not be in the correct location.
