Coleman Mach 9430E7153 Deluxe ChillGrille RV Air Distribution Box w/ Manual Controls

(No reviews yet) Write a Review
SKU:
9430E7153
UPC:
755790005529
MPN:
9430E7153
Shipping:
Free Shipping on Orders over $99. Exclusions Apply.

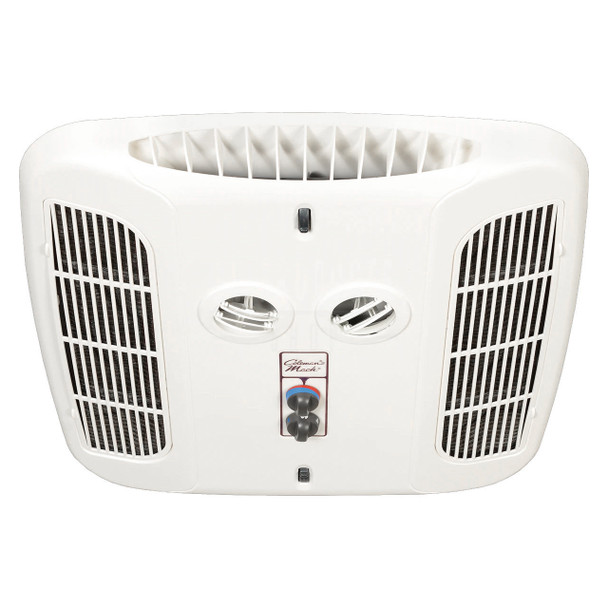

  • Coleman Mach 9430E7153 Deluxe ChillGrille RV Air Distribution Box w/ Manual Controls
  • Coleman Mach 9430E7153 Deluxe ChillGrille RV Air Distribution Box w/ Manual Controls
  • Coleman Mach 9430E7153 Deluxe ChillGrille RV Air Distribution Box - Included Parts
  • Coleman Mach 9430E7153 Deluxe ChillGrille RV Air Distribution Box w/ Manual Controls
$159.00

Description

Coleman Mach 9430E7153 Deluxe ChillGrille RV Air Distribution Box w/ Manual Controls
This is the Air Distribution Box (ADB) for the interior of the RV. It connects to the air conditioner with four bolts, sealing the A/C to the roof. The ADB also acts as a divider for the interiors intake and discharge. The ceiling controls allow for simpler wiring and the convenience of the controls be easily accessible.
  • Manual Controls: Adjust temperature and fan speed with simple turn knobs
  • Low Profile Design: (just 2" thick) leaves more headroom in the cabin
  • Simple Wiring: 12V not required, only 115V AC power is necessary
  • POP-OUT Retainer Grilles for easy, tool-free access to the washable air filters
  • Heat-Ready Design: compatible with an electric heat strip for added warmth on chilly days (Sold Separately)
ChillGrille™ with Omni-Directional Louvers
The innovative ChillGrille™ design features omni-directional louvers that allow you to direct conditioned air downward into the RV interior in any direction. When these louvers are closed, air is directed forward and aft through the front and rear airflow dampers, ensuring efficient distribution throughout your space.
Non-Ducted Applications
A non-ducted Air Distribution Box is a ceiling assembly designed for RVs that do not have a built-in ducted air system. It serves as the interface between a rooftop air conditioner and the interior of the RV, allowing cool (or warm) air to be distributed directly into the living space without the use of air ducts. Unlike ducted systems, which circulate air through a network of ceiling ducts, a non-ducted ADB relies on vents or louvers to direct airflow from the AC unit into the RV’s interior. This setup is simpler, easier to install, and typically more cost-effective, making it a common choice for smaller RVs, travel trailers, and campers.
Product Information
Approx. Dimensions
22"L x 21"W x 2-1/4"H
Cut-Out Requirements
14-1/4" x 14-1/4" square opening
Compatible with
Coleman Mach AC Models: Mach 1, Mach 3, Mach 8, and Mach 15, and Roughneck units.
What's Included
Ceiling Assembly
Control Knobs
Grilles and Filters
Ceiling Assembly Chute
Mounting Frame
Cloth Air Duct Assembly
Mounting Hardware
What's Not Included
Air Conditioner
