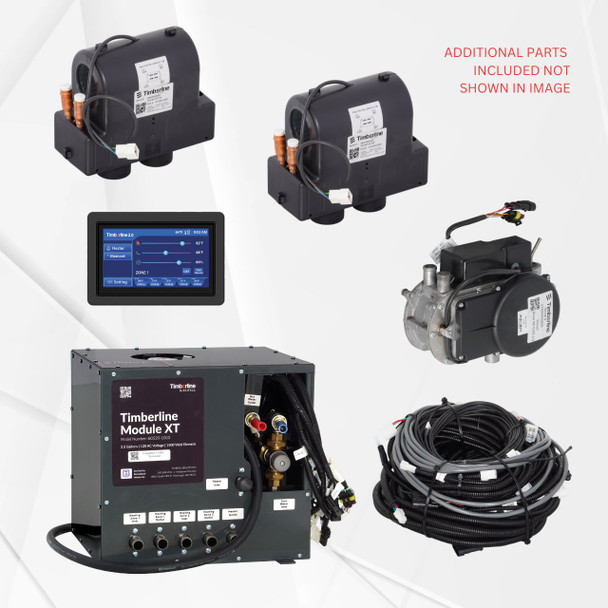

Elwell B88005 Timberline 2.0 Diesel Hydronic Heating System - 17K BTU

Timberline is specifically designed to provide consistent heat and hot water, even in extreme temperatures. The system is programmed to efficiently manage energy using the Autoterm Compact Heater, which is optimized for seamless use whether you’re traveling in high altitudes or at sea levels.

Comfortable heat is provided by automated air handlers that run softer or harder depending on what your climate demands. Should you want a quick boost of heat, a supplemental 120V heating element is also available when your motorhome is plugged into shore power. Set your desired temperature and enjoy your adventure with peace of mind, knowing that warmth and hot water will be waiting for you when you get back.

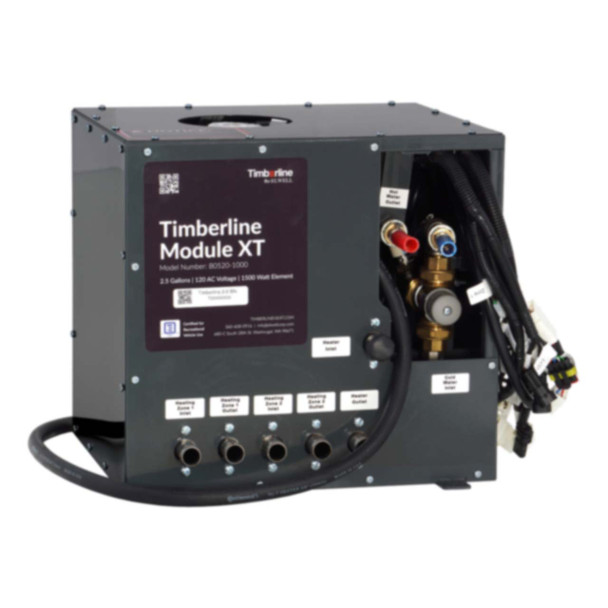

Thanks to Timberline’s instantaneous water heat exchanger, you can count on endless hot water in your vehicle— a true luxury.

No need to worry about how well your heating will work while camping in the mountains! The Timberline system performs seamlessly in high altitudes, allowing you to climb with peace of mind.

The Timberline heating system features rich hydronic heating. Should you want an extra boost of hot air, supplemental 120V heating is also available when plugged into shore power.

• Continuous Hot Water
• Seamless High Altitude Function
• 120V Supplementary Heat
• Intuitive Touch-screen and RVC Ready
• All-in-one Installation
• Two Heating Loops and up to Five Zones
• No Sidewall Penetration
• Clean System operation
• Automatic Summer/Winter Operation
• TEi Certified to UL and CSA Standards

* Dimensions do not include water fittings, mounting tabs, wiring, and case fasteners.
** Dimensions do not include wiring harnesses.

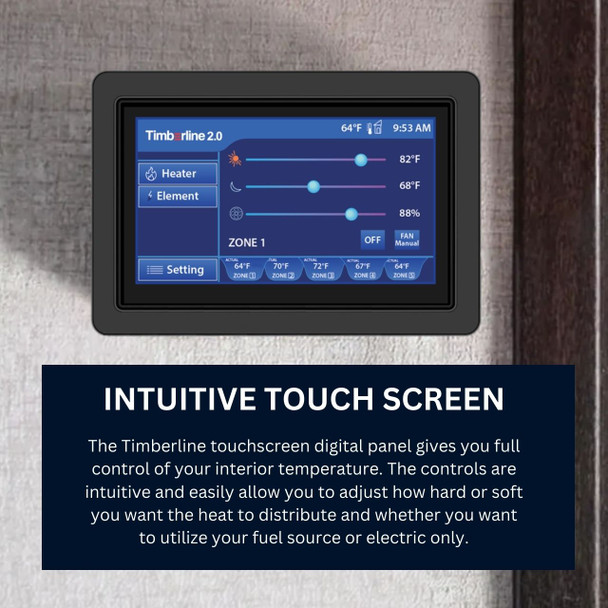

Each of the five zone has their own separate heating controls that can be accessed by tapping the zone buttons at the bottom of the display screen. Once a zone is selected, simply tap the heater button and the zone off/on button to activate the heater. You may then use the day and night sliders to determine your preferred temperature for that zone.

As with the original Timberline system, Timberline 2.0’s fans automatically adjust depending on the call for heat. Should you want to control the fan speed yourself, a manual fan option is also available for each heating zone.

While the heater is running, you have the option to simultaneously use supplemental electric heat by selecting the Element button. The 1500 watt 120V electrical element will activate and provide supplemental heat to the coolant.

When both the Heater and Element buttons are selected, the system automatically prioritizes using heat from the electric element. If there is greater heating demand on the system the burner will engage and heat the glycol.
