Dometic™ Duo-Therm 3314471.013 OEM Penguin II Air Conditioner Fan Motor
- SKU:
- DMP-529
- UPC:
- 713814201708
- MPN:
- 3314471.013
- Shipping:
- Free Shipping on Orders over $99. Exclusions Apply.
Description

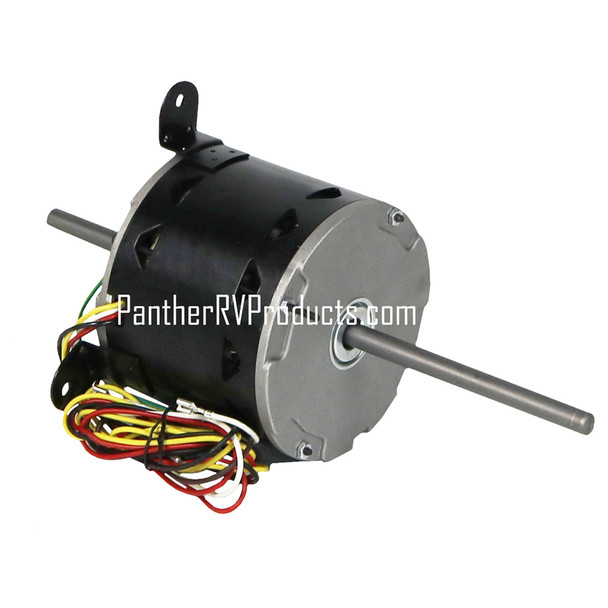

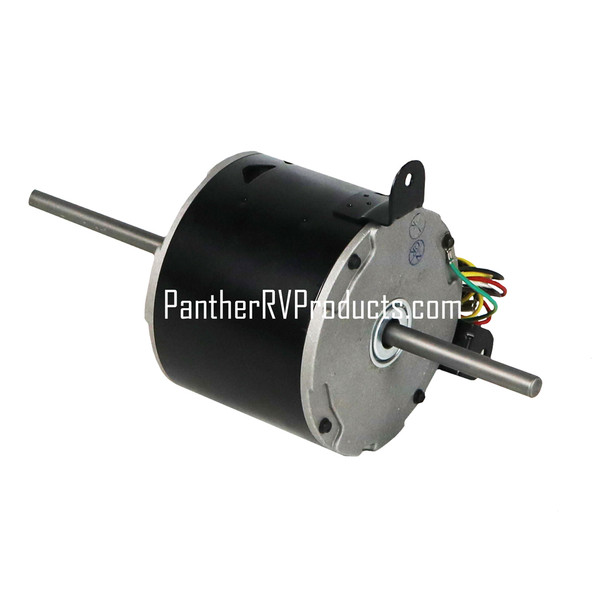

Dometic™ Duo-Therm 3314471.013 OEM Penguin II Air Conditioner Fan Motor
This is an OEM replacement fan motor for select Dometic or Duo-Therm Penguin II roof top air conditioners. This motor powers the fan and blower wheel that moves air through the RV's air conditioning system. The RV air conditioner motor is responsible for generating the force required to move the air through the air conditioning system. It is designed to operate at high speeds for extended periods of time and is built to withstand the harsh conditions of RV travel.- Mounting Style: Dometic Penguin II Series mounting brackets
- Motor Type: Genteq F48AE61A61
- Connection Style: Wiring to connect to a capacitor and a 6-pin plug
Reliable and Efficient
This is a shaded pole motor which works by creating a rotating magnetic field using an AC power source. This results in low noise, high reliability, and low maintenance. Shaded pole motors are generally quieter than other types of motors, and have a simple design that reduces the risk of mechanical failure. They are also less susceptible to damage from power surges or voltage fluctuations, which can increase their reliability and lifespan.3-Speed Function
The 3-speed function includes low, medium, and high settings, each providing a different level of air flow. This allows for greater customization of the air conditioning system's operation and can help to improve energy efficiency by matching the air flow to the cooling load.Make sure you order the correct motor for your air conditioner model number. The Dometic part number is in relation to the complete motor, mounting style and connection style. If the Genteq number on your motor matches this motor, it does not guarantee it will match the mounting style and connection style.
Additional Info
Genteq Model#
F48AE61A61
Power
1/4 HP
Max Speed
1650 RPM
Voltage
115V AC
Amps
3.7
Motor Dimensions
5 ⅝"Dia. x 4 ⅝"T
D-Shaft #1 Dimensions
5 ¾"L x 1/2"D
D-Shaft #2 Dimensions
3-11/16"L x 1/2"D
Compatible with
Dometic Penguin II Models: 640315, 640316, 650015, and 6500162 Reviews
-
works fine
Perfect replacement
-
Perfect Replacement
I ordered this motor for my penguin II low pro. It was a perfect replacement. I had a couple of questions for Panther Rv, they responded very quick with taking time to contact Dometic for the best response possible. Im very impressed with the staff at Panther Rv and I'm now a customer for life. Thanks again to Panther Rv for your product and great service.
