Dometic

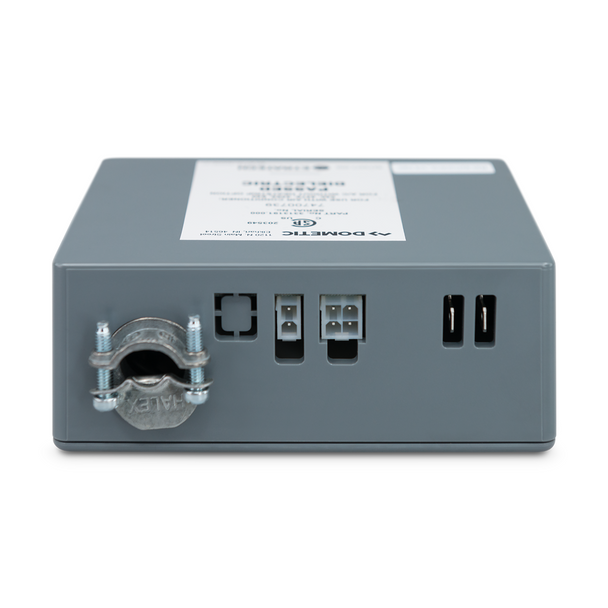

Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White

(6 reviews) Write a Review
SKU:
DMP-969
UPC:
713814321178
MPN:
3316230.700
Shipping:
Free Shipping on Orders over $99. Exclusions Apply.
  • Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White
  • Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White
  • Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White
  • Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White
  • Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White
$182.99

Description

Dometic™ 3316230.700 (9600024570) Single Zone CT Thermostat w/ Control Board (Cool/Furnace) - White
Using the advanced technology of the captive sensors instead of physical buttons, the comfort of your RV is literally at your fingertips with the CT Thermostat. Gentle taps on three input areas of control give you access to all the climate control features. Touch any input and the display lights up so you can see your temperature, mode, and set point.
  • Single Zone Control: Operates one Dometic air conditioner
  • Cool, Furnace and Fan Mode: Use Low, High, and Auto Mode on your A/C and Furnace
  • Blue LED Backlight: Easy to read LCD display
  • Capacitive Touch Interface: Modern controls offer easier operation
The CT Thermostat is very easy to use and can be set for manual or automatic operation of your non-ducted or ducted rooftop air conditioning unit. The large custom LCD display is easy to read and the blue backlight makes it easy to see even in low light. With just three capacitive-touch graphic symbols, the thermostat is simple to understand and operate.
Functions
This thermostat can be used for cooling functions and furnace control. This thermostat CANNOT control a furnace without a Dometic A/C in the system. It DOES NOT have Bluetooth capabilities. Compatible with the following Dometic Air Conditioners: B59530, B57915, B59516, 640310C, 640315C, and 640316C.
Non-Returnable
This is an electrical component, per Panther RV Products return policy, this product is non-returnable.
More
View AllClose

6 Reviews

  • 5

    Great product, works great.

    Posted by Ralph Paalhar on Oct 3rd 2021

    The product arrived on time, great help from staff.

  • 5

    Dometic 331623.700 Thermostat and Control Board

    Posted by Sean B Haney on Jun 12th 2021

    Had a 16 year old Dometic main AC unit (59516.531) that the compressor would not turn off on our 2006 Weekend Warrior SLC3905. I googled quite a bit and found a lot of the same issue online- the main issue being a relay that had gone bad. Of course, the original control board (3107541.009) and the analog thermostat were no longer available, but a quick email to Dometic advised that the 3316230.700 would be a suitable replacement. Panther had the best price available, so I ordered and got in 4 days. Once received, it took a couple of long phone calls and emails with Dometic support, but I was able to wire it up myself. I can't remember the exact details (since I did this over 2 weeks ago), but be sure that the ground wires are all connected- then it will work great! Nice to now have a digital t-stat! and unit is blowing 46* air out of it- pretty good for a 16 yo unit!

  • 4

    controller board works as expected

    Posted by Earl W Phillips on Oct 13th 2020

    thermostat is low quality tho'

  • 4

    Unit controls works fine great!

    Posted by Ron loz on Jul 18th 2020

    Installation was easy. Wiring print not to clear. Took sometime to figure it out. But all works , great!

  • 5

    Domestic digital conversion thermostat

    Posted by Don Warren on Jul 14th 2019

    Great service

  • 4

    wiring and opperation

    Posted by clark on Jul 3rd 2018

    Because my old A/C themo. was wired directly to the furnace. lack of wiring made hook up tricky because the control box controls both. so far A/C runs good, can't make furnace connection. I did call and the Dometic service person was helpful in rerouting the output from the control box to free up an extra wire but so far can't run furnace.

View AllClose
