Dometic™ Americana 3308741.002 OEM Refrigerator Main Power Control Board

(1 review) Write a Review
SKU:
3308741.002
MPN:
3308741.002
  • Dometic™ Americana 3308741.002 OEM Refrigerator Main Power Control Board
  • Dometic™ Americana 3308741.002 OEM Refrigerator Main Power Control Board
  • Dometic™ Americana 3308741.002 OEM Refrigerator Main Power Control Board
  • Dometic™ Americana 3308741.002 OEM Refrigerator Main Power Control Board
MSRP: $141.15
$134.29
— You save $6.86

Description

Dometic™ Americana 3308741.002 OEM Refrigerator Main Power Control Board
This is a replacement lower control board for select Americana gas absorption refrigerators. The lower control board is the main circuit board on the refrigerator and controls the ignition and operation of the propane and the power to the AC element. This board requires an external igniter for igniting the propane.
Board Connections
P1: To upper control board, P2: Thermistor, P3: To gas valve/igniter, J1: Positive 12V DC from terminal block, J2: To interior light and climate control, J3: To auxiliary fan (S.) and/or ice maker heat tape, J4: Negative lead from thermocouple, J5: AC line voltage (Black), J6: AC neutral line (White), J7: AC neutral out to AC heater, J8: AC line out to AC heater Switched side, J9: Positive wire from thermocouple, J10: Negative to Chassis ground
Replaces
3850415013
Non-Returnable
Please keep in mind this is an electrical component, per Panther RV Products return policy, this product is non-returnable.
View AllClose

1 Review

  • 5
    Board replacement

    Posted by Stuart Morse on Nov 18th 2020

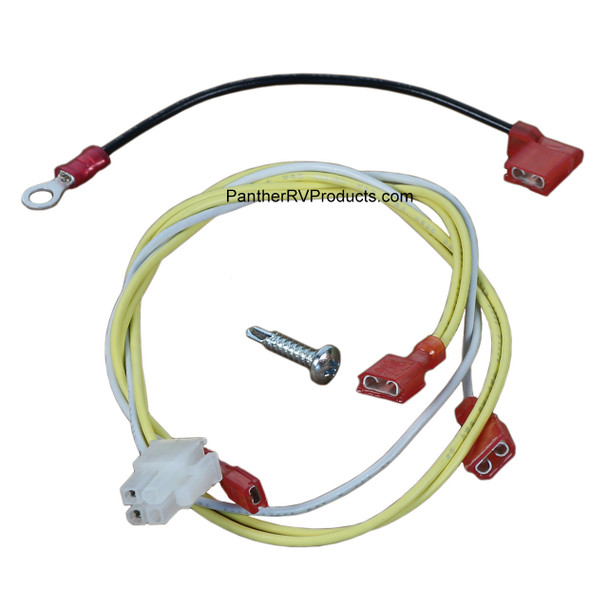

    This board was an exact replacement. There were additional wire harness included but must've been for some other model. Simple replacement, everything matched, Fridge return to normal operation immediately. Delivery was quick and on time.
