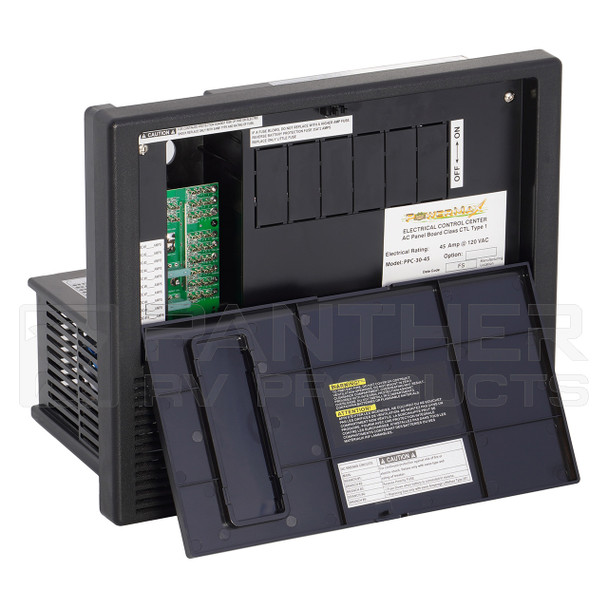

PowerMax PPC-30-45LK AC/DC Distribution Panel with Converter / Charger - 45 Amp

The PPC Series RV Power Center is designed to manage both the AC and DC power requirements within a motorhome. With lightweight design, it easily mounts within your RV’s power center housing and is an ideal replacement or upgrade for the WF 8900 PEC power center.

It features a 30 Amp main AC input, main and branch AC circuits, pre-wired DC circuits for ease of installation, and LED lights for each circuit to indicate open circuits.

The PPC Series comes with the AC/DC Smart Charger built-in to properly charge and fully maintain the battery voltage. It provides clean 12Vdc power for all sensitive electrical equipment with or without a battery in line. User-adjustable DC voltage is standard so the PPC Series can be used with many battery types, including lithium on the single fixed output mode. You will not need to replace it when upgrading the battery type in the future.

• Suitable for ALL battery types including lithium, lead acid and AGM
• Switchable between 3 stage charging for lead acid and AGM batteries or fixed single output mode for lithium batteries
• 3 stage charging automatically switches the output voltage for fast, normal, and trickle charging depending on the state of the battery
• Fixed output mode voltage can be set between 13.0 Vdc to 16.5 Vdc
• Pre-wired DC Output
• Space for 1 main and 5 branch breakers
• Blown fuse indicator LEDs
• Reverse polarity, overload, and thermal protection
• Temperature controlled quiet cooling fan
• 2-year warranty
