PowerMax PM3-45LK Power Converter / Charger - 45 Amp

(No reviews yet) Write a Review

SKU:: PMC-839
UPC:: 685867998020
MPN:: PM3-45LK
Shipping:: Free Shipping on Orders over $99. Exclusions Apply.

MSRP: $170.00

$159.00

— You save $11.00

Current Stock: 2

Quantity:

Description

Description

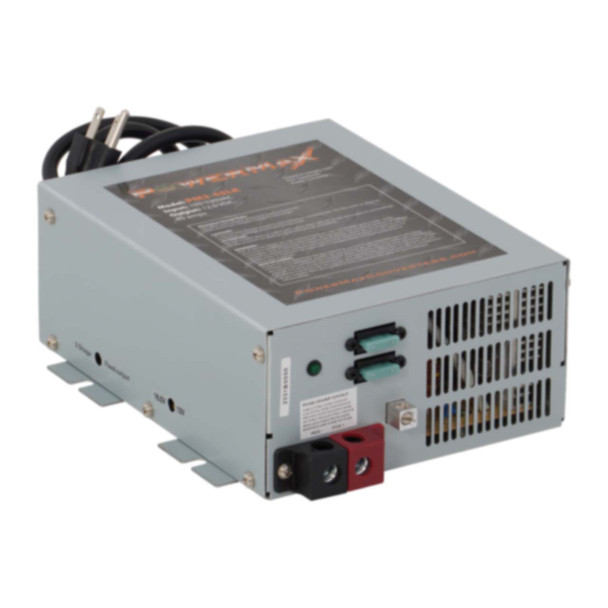

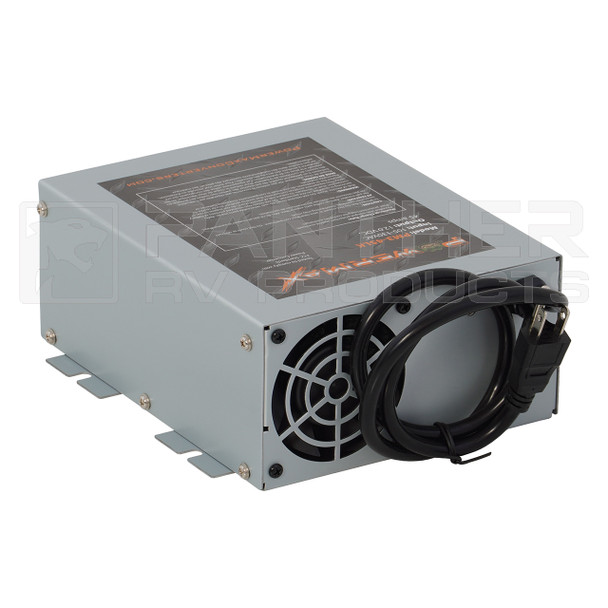

PowerMax PM3-45LK Power Converter / Charger - 45 Amp

The PowerMax PM3 Series converts 110Vac power to 12Vdc power to charge a battery and/or power 12V equipment. Featuring state of the art 3 Stage Smart Charging and adjustable power supply modes, the PowerMax AC to DC power converter/battery charger is engineered with the user and variable environmental conditions in mind.

It will fully charge and maintain any battery type while providing very clean DC power. Ideal for use in RV, Automotive, Boat, Car Audio, or any applications where battery charging and/or 12V power is needed.

Features

Suitable for charging ALL battery types including Lithium, Lead Acid and AGM
Switchable between 3 stage charging for lead acid and AGM batteries or fixed single output mode for lithium batteries
3 stage charging automatically sets the output voltage for fast, normal, or trickle charging depending on the state of the battery.
Fixed output mode voltage can be set between 13.0 Vdc to 16.5 Vdc
LED indicator light (charging)
Temperature controlled quiet fan cooling
Reverse polarity, overload, and thermal protection
2-Year manufacturer warranty

Specifications

3 Stage Output Voltage (No Load) Approx.

14.6 / 13.6 / 13.2V

Fixed Output Voltage Range

13.0 to 16.5VDC

Max Amp Output Continuous

45 Amps

Max Power Output Continuous

650 watts

Max AC Input Current

9 Amps

Typical Efficiency

>85%

Fan Control

Proportional

Reverse Polarity, Overload, and Thermal Protection

Yes

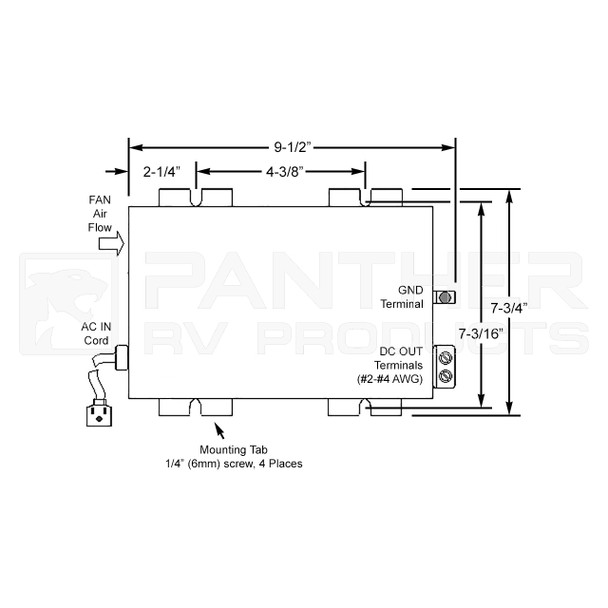

Dimensions

3 ½"H x 7 ¾"W x 9 ½"D

The PM3 12V Series is compatible with LiFEPO4 batteries and is recommended by many of the popular lithium battery manufacturers such as Battle Born, ReLion, Lithioncs, Life Blue, and more!
