Thetford C224-CW Self-Contained Cassette Toilet - Manual Flush w/ 050-935 Shower Pan

The Thetford C224-CW includes an integrated 2.37-gallon fresh water tank, a manual push button for bowl rinsing, and a rotating seat for flexible positioning. It’s easy to maintain with a removable seat and a 4.7-gallon waste tank featuring a no-splash spout, wheels, and a retractable handle. Designed for a clean finish, it also offers a built-in tank level indicator, automatic pressure vent, and concealed plumbing lines. Paired with it in this kit is the Thetford 050-935 Shower Pan, a small molded shower tray that is compatible with the Thetford C223 or C224 cassette toilet. This shower tray will add a professional look to your camper van conversion or other build that requires a small bathroom footprint.

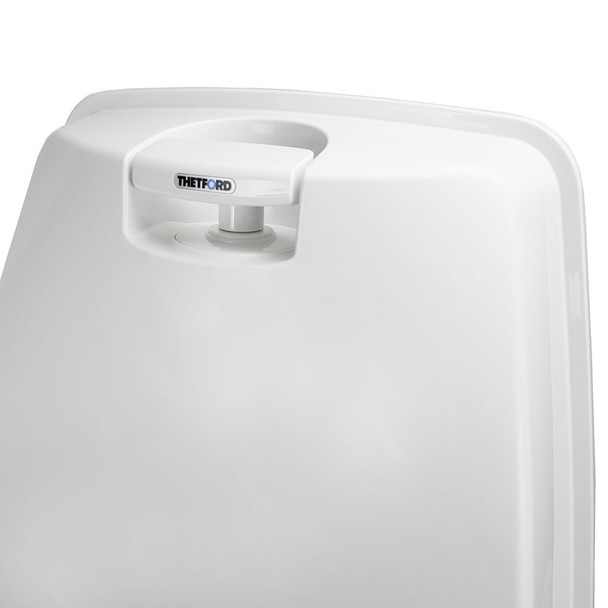

This toilet is flushed by pumping the flush handle up and down (located on the back panel of the toilet). The waste is then passed from the toilet bowl to the holding tank by moving the blade handle on the front of the toilet from left to right. To adjust the angle of the toilet bowl, close the cover and use both hands to rotate it up to 90° clockwise and 170° counterclockwise.

This cassette toilet is self-contained with a small freshwater tank and waste tank. An enclosure will be necessary since the back of the toilet is open. The installer will be required to build a foundation for the shower tray and toilet.
