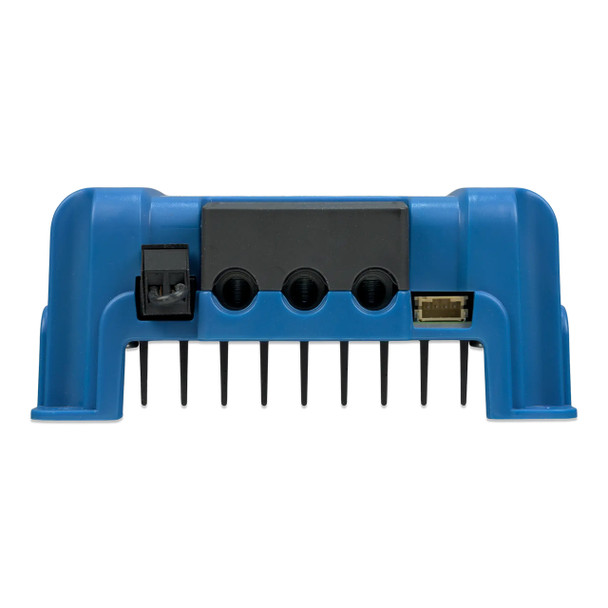

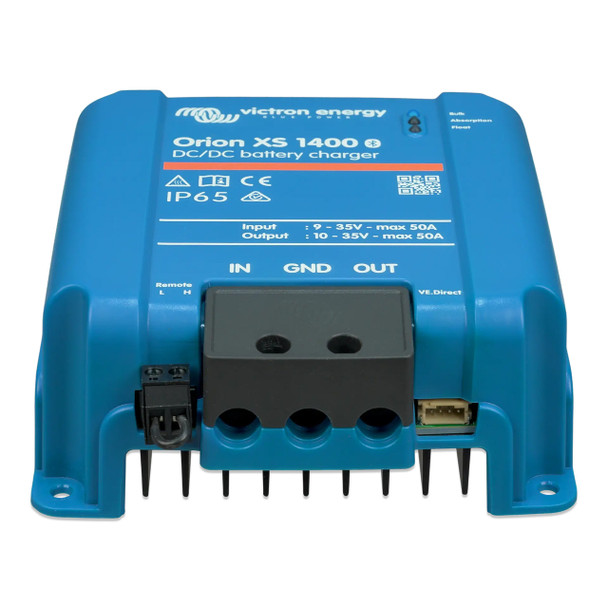

Victron ART-ORI242417040-VIC Orion XS 1400 DC-DC Charger

The Victron Orion XS 1400 is a powerful, fully programmable DC-DC charger designed for high-demand mobile and off-grid systems. Its wide input range, adjustable output voltage, and adaptive charging algorithm make it suitable for 12V, 24V, or mixed-voltage battery banks. With a rugged IP65 design, fanless cooling, and built-in smart alternator compatibility, the Orion XS 1400 delivers reliable and efficient charging for large RVs, vans, boats, and commercial equipment.

High-Power Charging & Flexible Voltage Support: The Orion XS 1400 accepts 9–35V input and provides adjustable output voltage from 10–35V, allowing use in both 12V and 24V systems. Output current is user-adjustable from 1–50A, with up to 1400W available on 24V systems. Its adaptive 4-stage charging profile supports LiFePO₄, AGM, Gel, and Flooded batteries with customizable parameters.
Smart Alternator & Engine Detection: Built-in engine/shutdown detection enables the charger to activate only when the alternator is running, making it fully compatible with modern Euro-5/6 smart alternators and ECU-controlled vehicles.
Bluetooth Configuration & Monitoring: All settings — including current limit, charge voltages, absorption time, and protection thresholds — can be configured through the VictronConnect app. Users can view live data, track charging performance, and apply firmware updates wirelessly.

Robust Protection & Durable Design

The Orion XS 1400 features over-temperature protection with automatic derating, input undervoltage lock-out, reverse polarity protection, and short-circuit protection. The fanless, IP65-rated housing ensures silent operation and long-term durability in harsh or mobile environments.

System Integration & Power Supply Capability

In addition to battery charging, the Orion XS 1400 can operate as a stabilized DC power supply with adjustable output voltage. It supports VE.Smart Networking, VE.Direct communication, and remote on/off control, allowing seamless integration into larger Victron Energy systems and GX-based monitoring platforms.

Efficient High-Power Charging:

With efficiency up to 98.5%, the Orion XS 1400 delivers strong charging performance with minimal heat generation. It can also recover deeply discharged batteries, provided the cells are not permanently damaged.

Additional Info

Input Voltage Range

9-35V

Output voltage range

10-35V

Maximum short-circuit current

50A

Continuous output power (up to 40 °C)

1400W

Maximum efficiency

98.5%

Color
