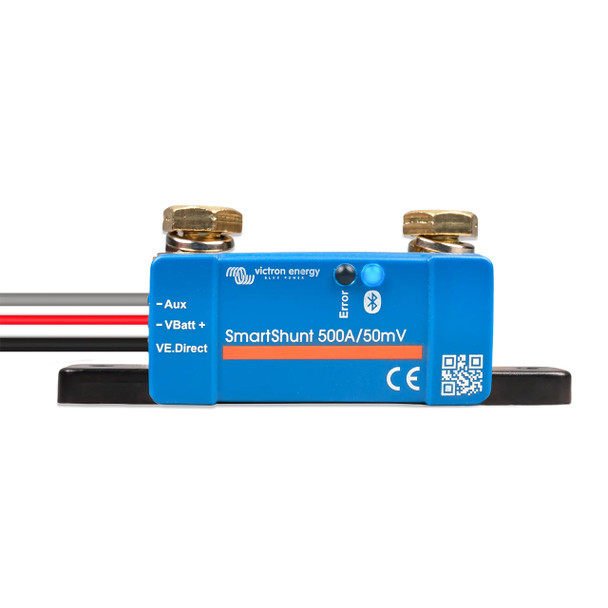

Victron ART-SHU065150050-VIC Victron SmartShunt Battery Monitor W/ IP65 Rating - 500A

The Victron SmartShunt IP65 / 500A is a compact, intelligent battery monitor that provides detailed insight into battery usage and system performance without the need for a front-mounted display. By measuring battery voltage and current, the SmartShunt accurately calculates state of charge, consumed amp-hours, and remaining runtime. All data is instantly available through the VictronConnect app, making it an ideal solution for RVs, vans, boats, and off-grid systems where clean installation and reliable monitoring are essential. Designed for flexibility, the SmartShunt is compatible with all battery types and can also function as a DC meter for monitoring inverter input or individual loads such as refrigerators or pumps. Its sealed IP65 housing allows installation in harsh or exposed environments while maintaining long-term reliability.

• Intelligent Battery Monitoring: The SmartShunt continuously tracks voltage and current to calculate battery state of charge and time-to-go. It also records historical data, helping users understand consumption patterns and optimize system performance over time.
• Bluetooth Monitoring with VictronConnect: Built-in Bluetooth enables instant access to live data, history, and configuration through the VictronConnect app, without pairing delays. This eliminates the need for a dedicated display while still providing full system visibility.
• Flexible Installation & Clean Design:With no display or control panel, the SmartShunt installs directly on the negative battery connection, reducing cable clutter and making it easy to retrofit into existing systems.

The SmartShunt IP65 is fully sealed against dust and water, making it suitable for marine, mobile, and outdoor installations. Its rugged design ensures accurate monitoring even in demanding environments..

Through VE.Smart Networking, the SmartShunt can wirelessly share battery voltage, current, and temperature data with compatible Victron chargers to improve charging efficiency. When connected to a Victron communication centre such as the Cerbo GX, system data can be monitored locally or remotely through the VRM portal.
