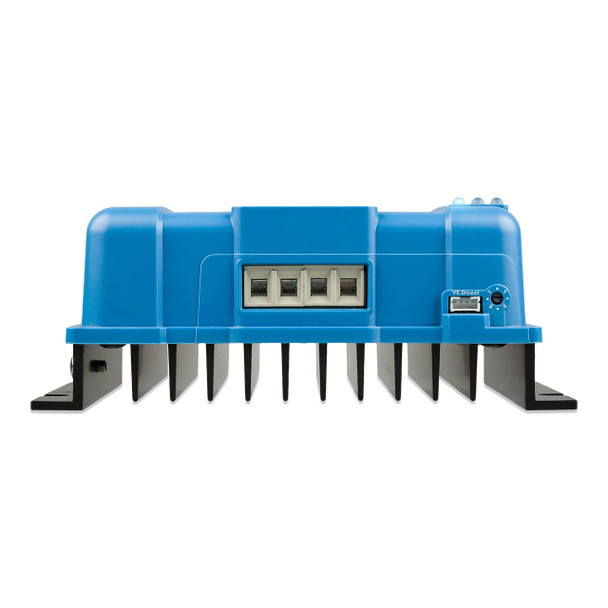

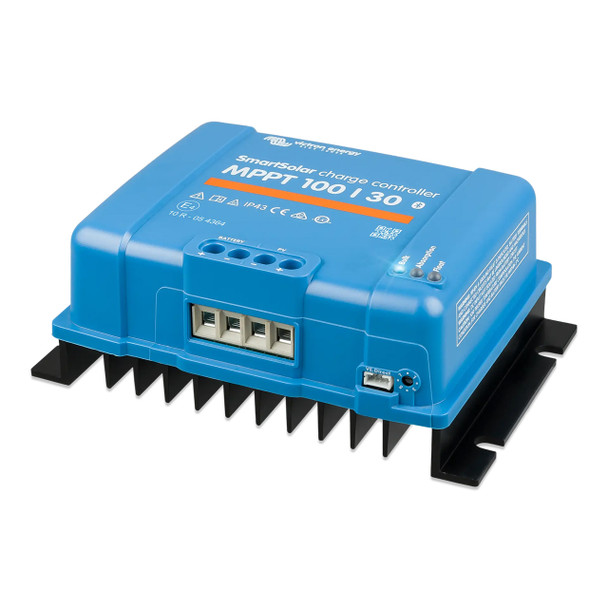

Victron ART-SCC110030210-VIC SmartSolar Charge Controller MPPT - 100V/30A

The Victron SmartSolar MPPT -Tr 100V/30A is a high-efficiency solar charge controller designed to maximize energy harvest and deliver fast, reliable charging for 12V and 24V battery systems. Using advanced Maximum Power Point Tracking (MPPT) technology, it continuously tracks the optimal power point of your solar array, ensuring maximum performance even in low or variable sunlight. With automatic system voltage detection, support for higher-voltage PV arrays, and built-in Bluetooth for easy setup, this controller is ideal for RVs, vans, boats, cabins, and off-grid solar installations.

• Ultra Fast MPPT Technology: The SmartSolar controller rapidly adjusts to changing sunlight, harvesting more energy than PWM and slower MPPT chargers. Its advanced tracking algorithm maintains optimal power output and performs exceptionally well during cloudy conditions or partial shading.
• High Conversion Efficiency: With a peak efficiency above 98%, the 100V/30A delivers strong charging power without a cooling fan. It maintains its full rated output up to 40°C (104°F), offering consistent, quiet, and efficient operation across a wide range of environments.
• Automatic System Voltage Detection: The controller automatically detects 12V or 24V system voltage during initial setup. If needed, system voltage can be manually changed through the VictronConnect app or charger settings.

The SmartSolar MPPT -Tr 100V/30A offers over-temperature protection with automatic output derating, as well as PV reverse polarity and reverse current protection. These features help safeguard both the controller and connected components during demanding or unpredictable conditions.

Built-in Bluetooth allows simple configuration and real-time monitoring through the VictronConnect app. Users can view live solar and battery data, review 30 days of history, adjust settings, and update firmware wirelessly. When paired with a GX device, the system can also be monitored locally or remotely via the Victron VRM portal.

SmartSolar technology helps batteries reach full charge quickly while maintaining long-term battery health. The controller can even recover and recharge batteries that have fallen to 0V, provided the cells are not permanently damaged.
