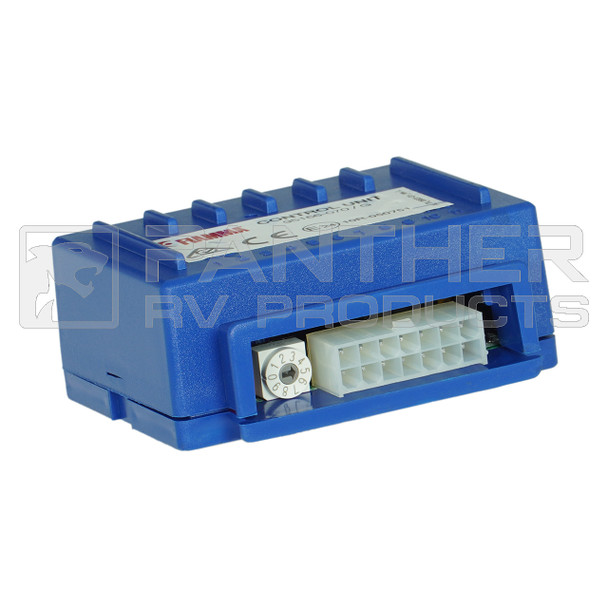

Fiamma® 98655A994 OEM Eagle Awning Control Unit 95166-070

This control board is designed for seamless integration with the Fiamma 12v Eagle awning. The unit accepts the awning plug connection (not supplied with the unit), which forms the primary link between the control unit and the awning wiring. The unit connects to the 12v battery supply and ignition relay playing a crucial role in the safe operation of the awning system, especially when the vehicle is in motion.

The control unit connects with the extend/retract switch, allowing users to manually control the awning's movements. Additionally, the unit is designed to integrate with a wind sensor, a critical safety feature that automatically retracts the awning in high wind conditions to prevent damage. It is connected to the micro switch, which ensures the awning's motor is deactivated when the awning is fully retracted, thereby preventing unnecessary strain or damage to the motor.
