Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - AC/DC - 2.2 CF

(No reviews yet) Write a Review
SKU:
C62IBD4-F-2
MPN:
C62IBD4-F-2
Oversized Package:
This product is not eligible for Free Shipping
  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - AC/DC - 2.2 CF

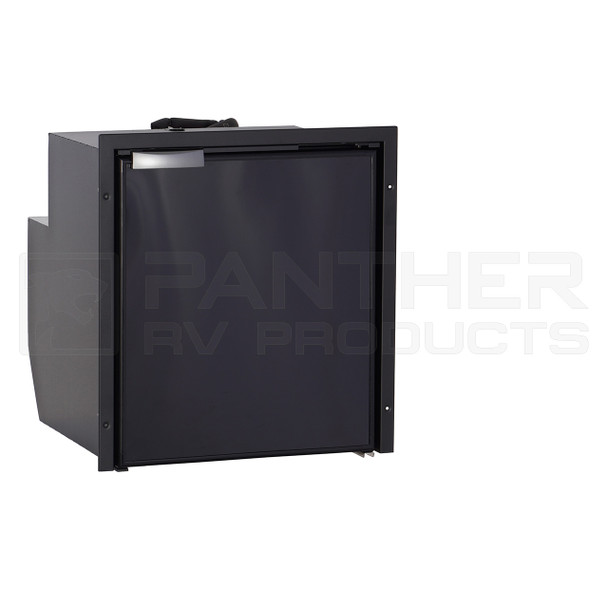

  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - Door Closed
  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - AC/DC - 2.2 CF

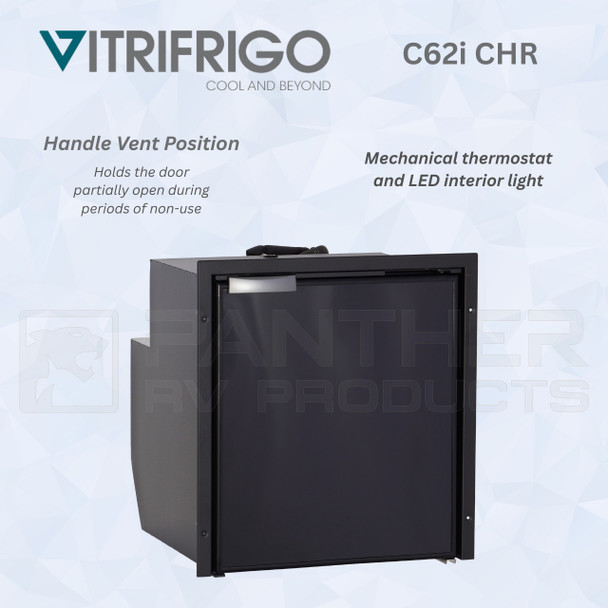

  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - Features
  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - Cabinet Dimensions

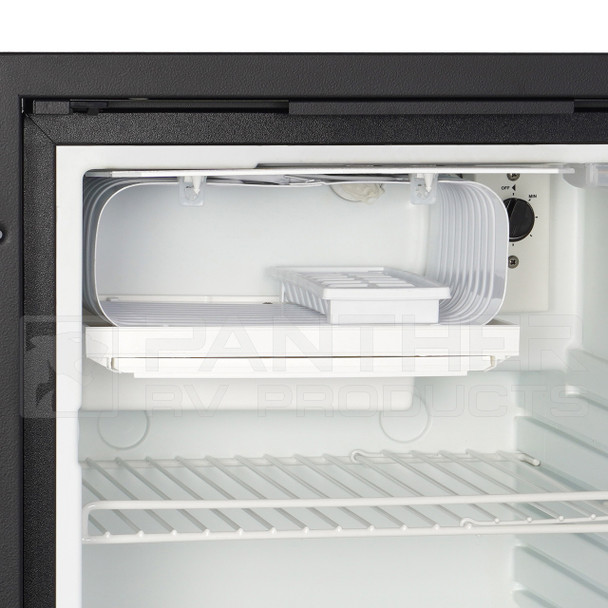

  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - Freezer Compartment
  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - LED Light - Thermostat

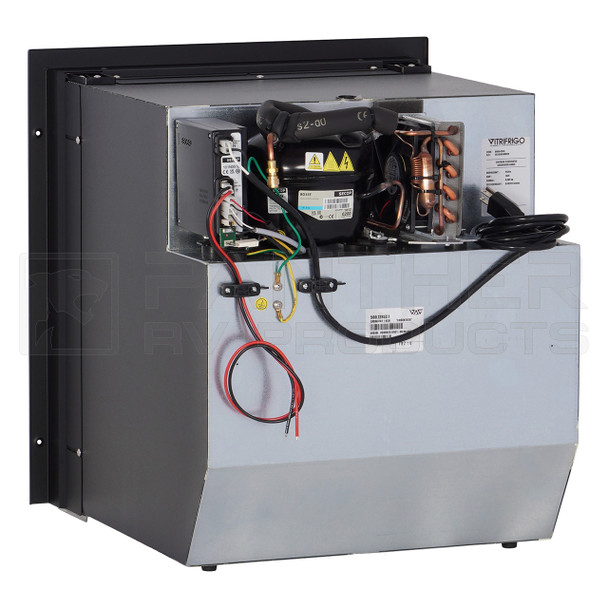

  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - Rear View

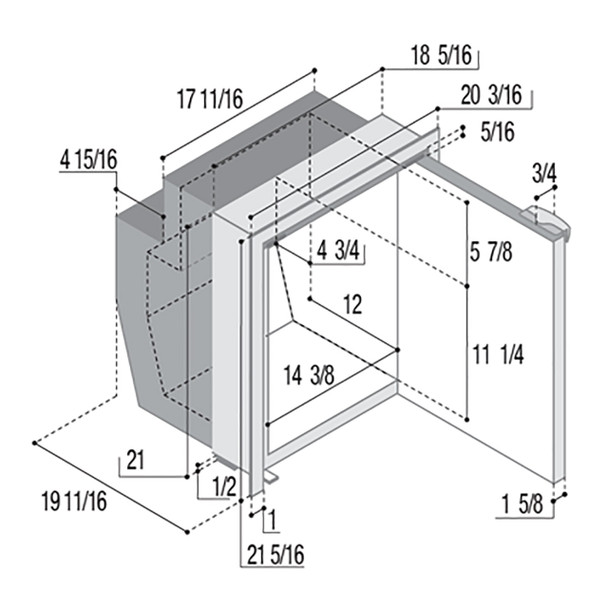

  • Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - Dimensions
  • thumbnail image
MSRP: $1,155.77
$924.62
— You save $231.15

Description

Vitrifrigo C62IBD4-F-2 Airlock RV Electric Refrigerator Freezer - AC/DC - 2.2 CF
The Airlock series' C62i CHR fridge-freezer presents an optimal solution with a total capacity of 2.2 CU Ft., including 0.2 designated for the freezer compartment.
The refrigerator can be used with or without the included flange. A lower flange piece (not shown) is also included. The flange can be mounted for flush installations or with the door proud of the cabinet face which allows for a larger door swing.
The door incorporates an innovative "vent position" system integrated into the handle, allowing partial opening during periods of non-use. This feature not only prevents the formation of molds and unwanted odors but also contributes to ensuring better food preservation.
Superior Quality
Designed and manufactured in Italy, Vitrifrigo refrigerators exemplify superior craftsmanship and adherence to high standards, making them a reliable choice for both marine travel and overland vehicles. Each unit is meticulously engineered to endure the harsh conditions encountered during travel, offering robustness and longevity. The precision manufacturing process ensures that these refrigerators meet stringent European quality standards, providing dependable performance and durability. Whether navigating rough seas or traversing rugged terrains, Vitrifrigo refrigerators deliver consistent, high-quality refrigeration, making them an ideal solution for those seeking reliability and excellence in their mobile refrigeration needs.
Danfoss / Secop Compressor
Vitrifrigo refrigerators are made with the reliable and quiet Danfoss / Secop DC Compressor. The Danfoss / Secop compressor is tried and true, with Danfoss having more than 60 years experience manufacturing compressors, and is used by marine refrigerator manufactures because of its durability, dependability, and long life.
Electric refrigerators are sensitive to power changes or insufficient power. It is important that the system can handle 15 amps of 12V DC power. A minimum of 10 gauge wire for installations up to 12 ft. is required. If the refrigerator is supplied with insufficient power, it will not operate, or show signs of difficulty operating.
Additional Information
Total Volume (cu.ft.)
2.2
Approx. Overall Dimensions (w/o flange)
17 ¾"W x 20 ⅞"H x 22 ¾"D *
Approx. Cut-Out Dimensions w/flange (flush)
18 ½"W x 20 ⅞"H x 22"D
Approx. Flange Dimensions
20 ¼"W x 22 ½"H
Power Source
12V/24 VDC, 100-240 VAC
DC Current
3.2A @12V / 1.6A @24V
Nominal Power Consumption
38 Watts
Compressor
SECOP BD35F
Refrigerant
R134a
Weight (lbs)
39.7 lbs.
Door Swing
Right
Door Reversible?
Yes
* Includes Refrigeration Components, External Lines, and Door Handle
Note: The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
What's Included
1x Refrigerator
1x Instruction Manual
1x Four-sided Flange
What's Not Included
Mounting Hardware
Important Shipping Information
This product is crated for shipment to ensure product safety during transit. Due to this, there could be up to a 48 hour delay for the shipment to leave our facilities. This product cannot be shipped via expedited shipping.
Documents
About Vitrifrigo
Vitrifrigo is an Italian company specializing in the production of refrigeration systems, particularly known for their range of refrigerators designed for marine, automotive, and recreational vehicle (RV) use. These refrigerators are highly regarded for their efficiency, durability, and compact design, making them well-suited for environments where space and power are limited. Vitrifrigo refrigerators often incorporate advanced features such as low energy consumption, silent operation, and innovative technologies like air-lock systems to ensure a tight seal. Their product line varies from small, portable units to larger, built-in models, catering to a diverse range of needs in mobile and compact living spaces. The brand has gained a reputation for quality and reliability, making Vitrifrigo a popular choice in the specialized refrigeration market.
