Dometic
Dometicâ„¢ CRG3333BIFBB Colt RV 17" Propane Range - 3-Burner Cooktop / Oven - BLEMISHED
(No reviews yet)
Write a Review
- SKU:
- CRG3333BIFBB-BL1
- Oversized Package:
- This product is not eligible for Free Shipping
On Sale
BLEMISHED
Description

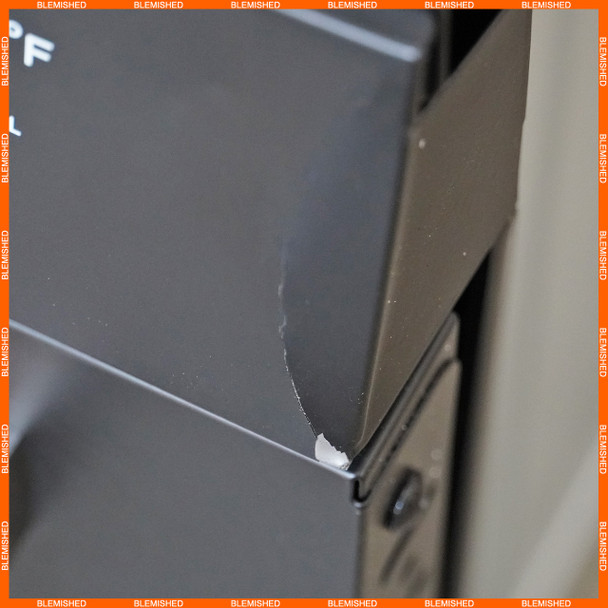

BLEMISHED - There is a small chip on the upper right corner of the lip of the oven door as well as a dent slightly below. Sold As-Is.
Dometic™ CRG3333BIFBB Colt RV 17" Propane Range - 3-Burner Cooktop / Oven - BLEMISHED
Dometic's Colt CRG3333BIFBB residential style RV range is suitable for new installations or as a replacement for an older Atwood or Dometic range. The cooktop is designed with a thick wire grate and traditional open burners. The knobs offer an industrial look and easy use.- Wire Grate: Thick wire grate offers durability
- Residential Quality: Made with high quality components
Cooktop
The cooktop features an easy to clean enamel surface with a heavy-duty wire grate. The 3-burners are equipped with a piezo spark ignition and ignitors for each burner. The two back burners offer up to 6.5K BTU and the front burner offers up to 8K BTU.Product Information
Overall Dimensions (Including Door Handle)
21-1/2"W x 16-1/8"H x 21-3/4"D
Cutout Dimensions
20 ¼"W x 16 â…›"H x 17 ¾"D
Front Burners BTU's
8,000
Back Burners BTU's
6,500
Power Source
LP Gas (Propane)
3-Burner Ignition
Piezo
Oven Ignition
Match Light
Safety Shutoff (Thermocouple)
No
Net Weight
55 lbs.
Replacement for:
Atwood: RA1730, RA1731, RA1732, RA1733, RA1734, RA1735, RV1731, RV1732, RV1733, RV1734, RV1735
Dometic: R1731, 50422, 50423, 50429, 50430, 50516
Atwood: RA1730, RA1731, RA1732, RA1733, RA1734, RA1735, RV1731, RV1732, RV1733, RV1734, RV1735
Dometic: R1731, 50422, 50423, 50429, 50430, 50516
Note:The dimensions listed here are for reference and are not intended to be used for cabinet design. We highly recommend taking measurements from the actual product before finalizing the design of your cabinetry and/or cutouts.
Propane Pressure Notes: This range requires low pressure (11” W.C.) propane for operation. This is achieved with a low pressure regulator which is standard/required on all RV's. If there is not a pre-existing RV propane system, then you will be required to setup a low pressure propane system.
RV ranges are designed smaller than household ranges, which means they produce less heat than thelarge burners on your range cooktop at home. An average household range cooktop has a BTU rating of 10,000. Additionally, you will most likely be using this cooktop during your travels with varying elevations. This range is rated for an elevation up to 4,500 feet. Operation above this elevation willreduce the BTU's by 4 percent for every 1,000 feet above 4,500 feet. For example, at 8,500 feet, the cooktop will perform approximately 16 percent less than it's rated BTU's. This is caused by a few factorsincluding the lack of oxygen in the air and the change in the air/fuel mixture.
RV ranges are designed smaller than household ranges, which means they produce less heat than thelarge burners on your range cooktop at home. An average household range cooktop has a BTU rating of 10,000. Additionally, you will most likely be using this cooktop during your travels with varying elevations. This range is rated for an elevation up to 4,500 feet. Operation above this elevation willreduce the BTU's by 4 percent for every 1,000 feet above 4,500 feet. For example, at 8,500 feet, the cooktop will perform approximately 16 percent less than it's rated BTU's. This is caused by a few factorsincluding the lack of oxygen in the air and the change in the air/fuel mixture.
What's Included
1x Range
