NBK 20435 (3315332.005) Dometic™ Brisk II Fan Motor Assembly

This is an aftermarket replacement fan motor for your Dometic or Duo-Therm Brisk II roof top air conditioner. This motor powers the fan and blower wheel that moves air through the RV's air conditioning system. The RV air conditioner motor is responsible for generating the force required to move the air through the air conditioning system. It is designed to operate at high speeds for extended periods of time and is built to withstand the harsh conditions of RV travel.

• Mounting Style: Dometic Brisk Air II Series mounting brackets
• Motor Type: Genteq F48AF70A61

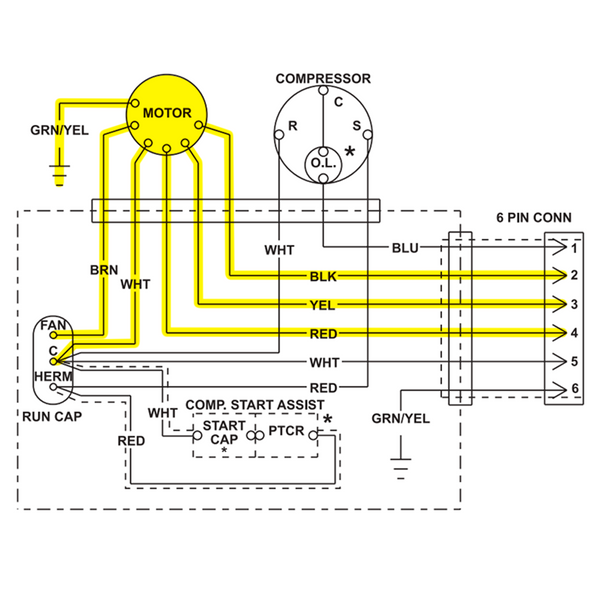

• Connection Style: Wiring to connect to a capacitor and a 6-pin plug (Plug NOT Included)

This is a shaded pole motor which works by creating a rotating magnetic field using an AC power source. This results in low noise, high reliability, and low maintenance. Shaded pole motors are generally quieter than other types of motors, and have a simple design that reduces the risk of mechanical failure. They are also less susceptible to damage from power surges or voltage fluctuations, which can increase their reliability and lifespan.

The 3-speed function includes low, medium, and high settings, each providing a different level of air flow. This allows for greater customization of the air conditioning system's operation and can help to improve energy efficiency by matching the air flow to the cooling load.

B57915.711C0, B57915.711J0, B59146.711C0, B59146.711J0, B59186.711C0, B59186.711J0, B59196.711C0, B59196.711J0, B59516.711C0, B59516.711J0, B59530.701C0 and B59530.701J0
