PowerMax PM3-55MBALK Power Converter / Charger Main Board Assembly - 55 Amp

(No reviews yet) Write a Review
SKU:
PMC-223
UPC:
685867998051
MPN:
PM3-55MBALK
Shipping:
Free Shipping on Orders over $99. Exclusions Apply.
  • click to enlarge
  • click to enlarge
  • thumbnail image
MSRP: $190.00
$179.00
— You save $11.00

Description

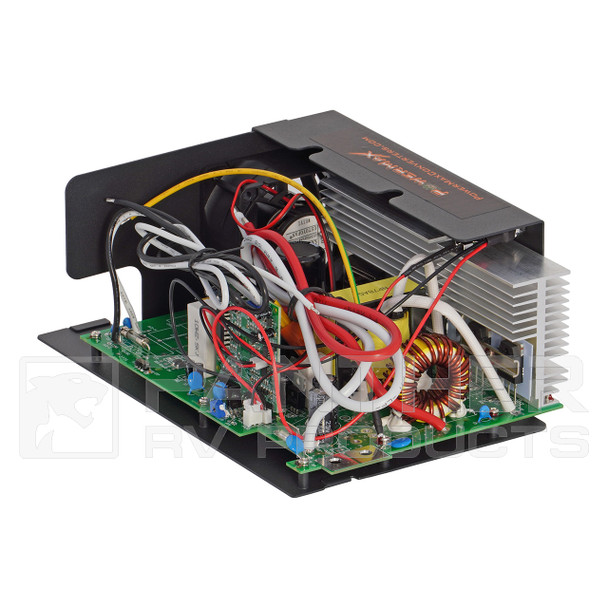

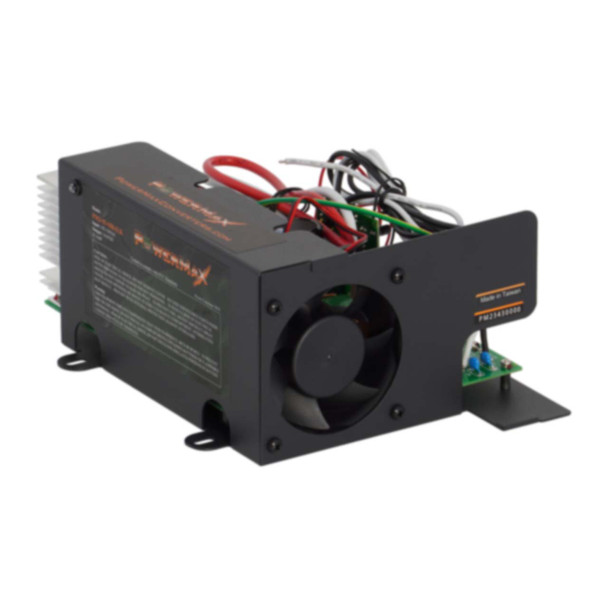

PowerMax PM3-55MBALK Power Converter / Charger Main Board Assembly - 55 Amp
The PowerMax PM3 MBA Series lower tray RV converters are designed to convert 110Vac power to 12Vdc power, which can be used to charge a battery and/or power 12V equipment. Featuring state of the art 3 Stage Smart Charging and adjustable power supply modes, the PowerMax AC to DC power converter is engineered with the user and variable environmental conditions in mind.
They will fully charge and maintain any battery type while providing very clean DC power. This makes them ideal for use in an RV to replace the lower section converter tray in a power distribution center.
The PowerMax mba series is an exact replacement for any WFCO 8900 Series MBA and other brands of lower tray converters. By using the PowerMax PM3 12V mba series lower tray RV converters, you can ensure that your RV’s battery is charged efficiently and that your 12V equipment is powered reliably.
Features
  • Exact replacement for the WFCO 8900 mainboard converter including the WF 8955 mba
  • Suitable for charging ALL battery types including Lithium, Lead Acid and AGM
  • Switchable between 3 stage charging for lead acid and AGM batteries or fixed single output mode for lithium batteries
  • 3 stage charging automatically sets the output voltage for fast, normal, or trickle charging depending on the state of the battery.
  • Fixed output mode voltage can be set between 13.0 Vdc to 16.5 Vdc
  • Temperature controlled quiet fan cooling
  • Reverse polarity, overload, and thermal protection
  • 2-Year manufacturer warranty
Specifications
3 Stage Output Voltage (No Load) Approx.
14.6 / 13.6 / 13.2VDC
Fixed Output Voltage Range
13.0 to 16.5VDC
Max Amp Output Continuous
55 Amps
Max Power Output Continuous
800 watts
Max AC Input Current
11 Amps
Typical Efficiency
>85%
Fan Control
Proportional
Reverse Polarity, Overload, and Thermal Protection
Yes
Overall Dimensions
4"H x 7 ⅛"W x 9 ⅞"D
The PM3 12V Series is compatible with LiFEPO4 batteries and is recommended by many of the popular lithium battery manufacturers such as Battle Born, ReLion, Lithioncs, Life Blue, and more!
