Renogy RBC50D1S 50A DC to DC & MPPT Solar Power Charge Controller
- SKU:
- RNG-489
- UPC:
- 810009712237
- MPN:
- RBC50D1S-G3-US
- Shipping:
- Free Shipping on Orders over $99. Exclusions Apply.
Description
Renogy RBC50D1S 50A DC to DC & MPPT Solar Power Charge Controller

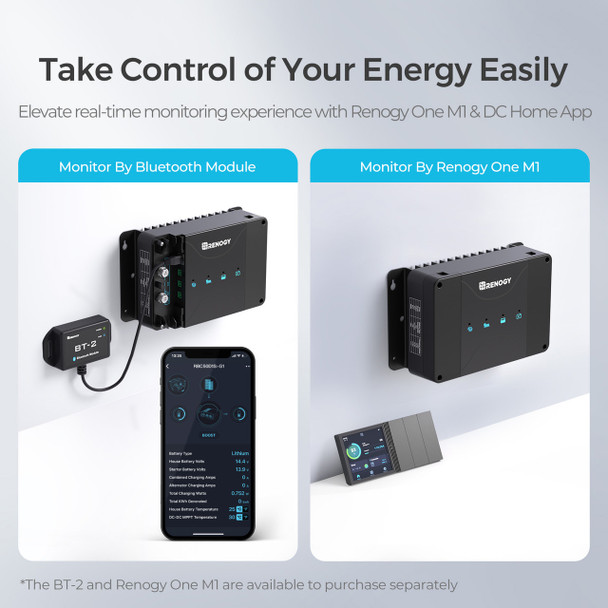

Renogy's DC to DC MPPT On-Board Battery Charger offers a comprehensive solution for multi-input, multi-stage battery charging. Engineered to provide flexibility, it allows users to charge a service battery either from an alternator-linked starting battery or directly from solar panels. This unit ensures that your service battery is the primary charging focus, allowing for prolonged off-grid utility. Designed to accommodate a wide range of battery types—Flooded, Gel, AGM, or Lithium—the charger also features an RJ45 communication port for enhanced monitoring and control capabilities via the BT-2 Bluetooth Module (not included) and Renogy DC Home App.Efficiency and Dual Charging Options

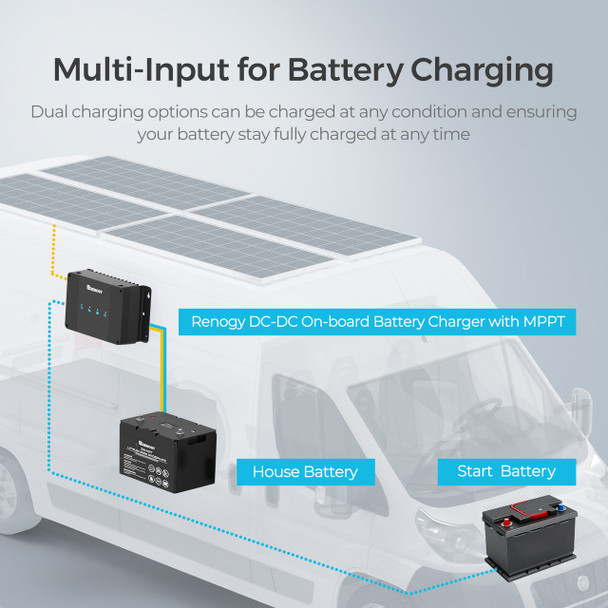

The unit's unique dual charging mechanism allows for charging the service battery from both an alternator-connected starting battery and solar panels simultaneously. This not only minimizes charging time but also achieves up to 99% MPPT tracking efficiency and 94% conversion efficiency.Structural Design and Safety Measures
Removable side covers are incorporated to prevent electrostatic damage by isolating product terminals from human contact during transport and use. An all-in-one NEG-terminal with a partition design simplifies installation by integrating the terminals for the solar panels, starter battery, and service battery.Circuit Design and Security Protocols
The Soft Start Circuit Design ensures a gradual rise in input voltage, mitigating the risk of instantaneous overvoltage that could damage the charger or result in the over-discharge of the starter battery. The unit is certified to CE, FCC, and PoHs standards and incorporates multiple intelligent security measures, including battery isolation and over-voltage, temperature, and current protection mechanisms, ensuring the safety of your batteries and overall charging process.Additional Info
System Voltage
12V
Maximum Charging Current
50 Amps
Max. Solar Input Voltage
25v
Alternator Input Voltage
Traditional Alternator: 13.2-16VDC Smart
Battery voltage Range
9-16VDC
Battery Types
SLD/AGM, GEL, FLD, LISER
Charging Efficiency
Up to 97%
Max. Solar Input Power
660W @ 50A
Max. Alternator Input Power
660W @ 50A
Dimensions
9.6 x 5.7 x 3.00 in.
Weight
3.13 lbs
Max. Terminals Size
M8*1.25 - 10mm
