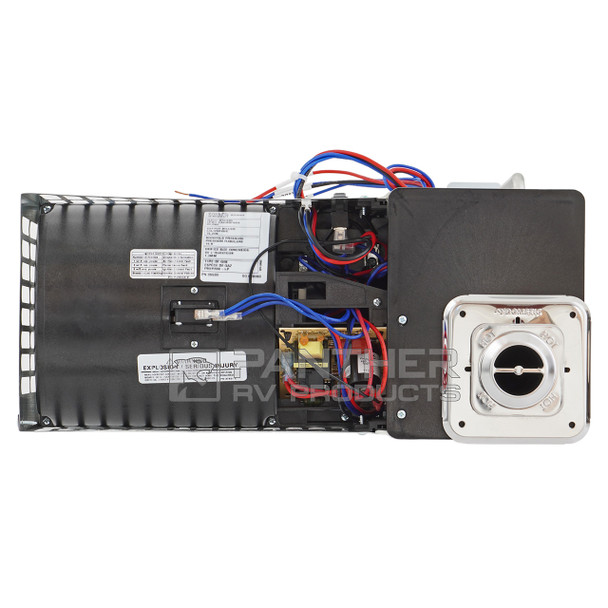

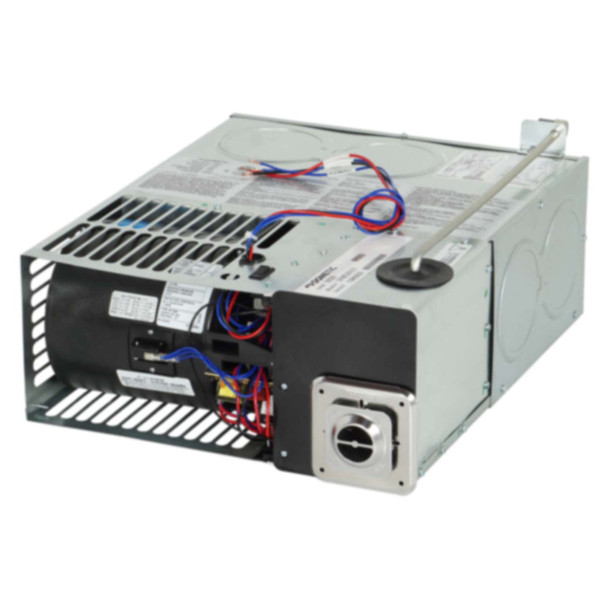

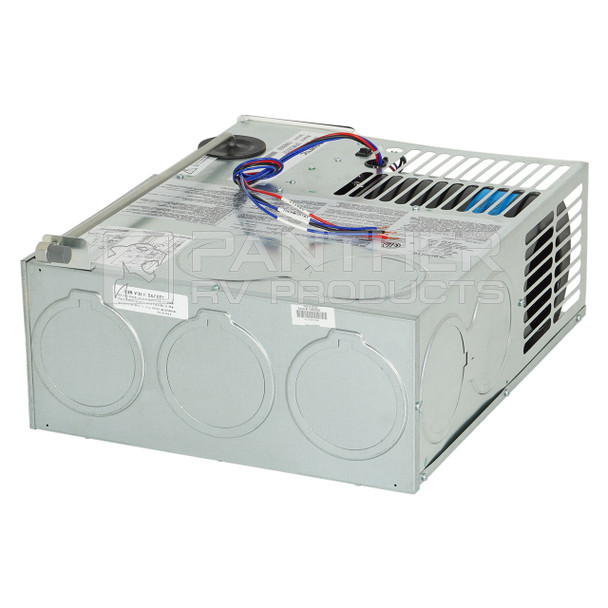

Dometic™ Atwood DFMD25121 RV Mojave Propane Furnace - 25K - Doorless

(No reviews yet) Write a Review
SKU:
35519
MPN:
35519
  • Dometic™ Atwood DFMD25121 RV Mojave Propane Furnace - 25K - Doorless
  • Dometic™ Atwood DFMD25121 RV Mojave Propane Furnace - 25K - Doorless
MSRP: $1,329.50
$1,180.00
— You save $149.50

Description

Dometic™ Atwood DFMD25121 RV Mojave Propane Furnace - 25K - Doorless
This is a doorless version of Dometic's DFMD25 Series Furnace. Meaning an exterior door is not necessary for the installation of the heater. There are pros and cons to this type of installation. The downside, is you have to service the furnace from the interior of the RV, rather than the exterior. The upside is you don't have to make a large cut into the side of your camper in order to install the exterior door. This furnace can be positioned in several different ways, making it the easiest furnace to install in a van conversion, small trailer, truck camper, or even an ice fish house.
Innovative heat exchanger
The one-piece tubular design eliminates seams and welding for a more robust heat exchanger that maximizes air distribution. The radius tubing allows the air to move more freely through and around the heat exchanger. Reduced air turbulence means a quieter furnace.
Flexibility
Don't worry about making your furnace fit one way, this furnace can be mounted horizontally or vertically. With several duct configurations to choose from, you can make your cabinet the way you want.
Applications
This unit is typically installed in tent campers, truck campers and small travel trailers due to its small size and lower BTU capacities. Recently it has been popular in custom van conversions and ice fish houses. It is sometimes used in larger trailers or motor homes for smaller zone heating.
Product Information
Furnace Dimensions
16-1/2"W x 7-3/8"H x 20"D
Power Source
Propane
BTU Input
25,000
BTU Output
19,000
Electrical Requirements
12 Volt DC
Amp Draw
7.5
Watts
90
The furnace housing is constructed of a pliable steel and you may receive it with a slightly bent housing. When it arrives, you may need to bend the housing back to a rectangular shape with a pair of pliers before installing.
What's Included
1x Furnace
2x Duct Rings
Instructions
What's Not Included
Thermostat
Interior Vent
Propane is an explosive gas! Appliance installations should be performed by qualified personnel only and must conform to all relevant local authorities. Installed appliances are non-returnable, and if found defective, must be warrantied with the manufacture. A qualified technician will be capable of handling a warranty if necessary.

Compatible Parts (Not Included)
Thermostats
Interior Vent
